Supermicro X7SBU Socket Sockel LGA775 Xeon Server Mainboard DDR3 PCIe VGA 2x LAN

Teilenummer: X7SBU

EAN: 4060787281258

Hersteller: Supermicro

Weitere Produkte der Kategorie



Supermicro X7SBU Socket Sockel LGA775 Xeon Server Mainboard DDR3 PCIe VGA 2x LAN 4060787281258
Supermicro X7SBU


44,44 €
(Preis inkl. 19% MwSt. zzgl. Versand):
D 4,99€, W 9,99€
Verfügbar: 9 Artikel
Auf Lager sofort lieferbar (Lieferung in 1-3 Werktagen)

Anzahl
Warenkorb
Auf den Merkzettel
Artikelnummer 503882
Gewicht 0,62 Kg
Zustand Gebraucht

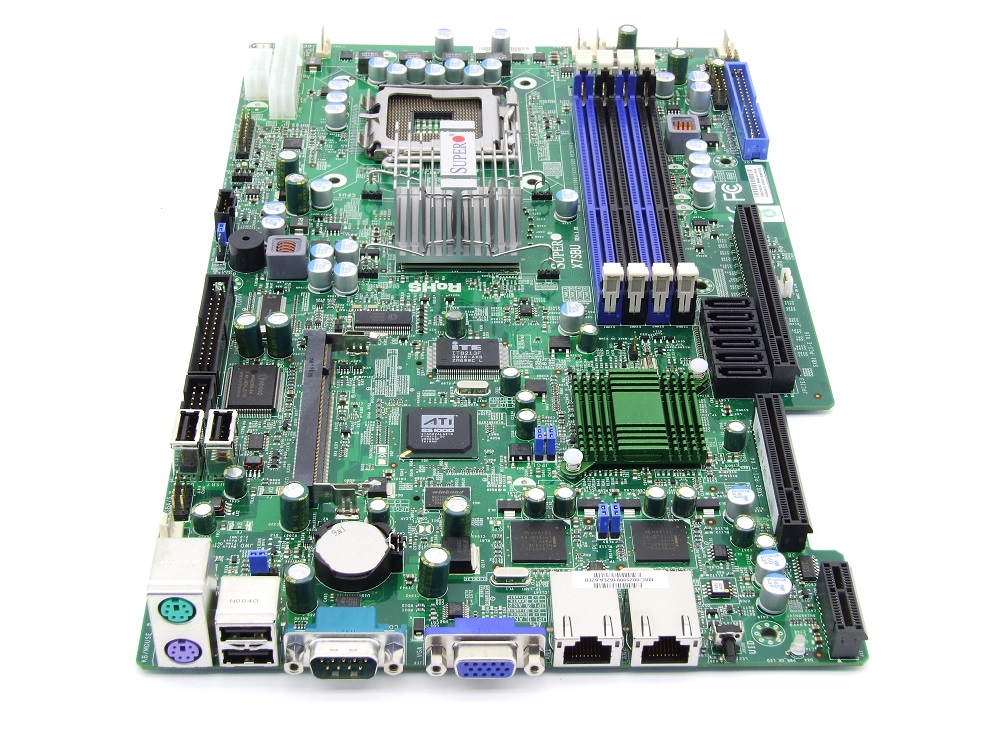

 Beispielbild - Abbildung ähnlich / Example Picture - Image similar

Supermicro X7SBU Socket Sockel LGA775 Xeon Server Mainboard DDR3 PCIe VGA 2x LAN

Optimiert unter anderem für folgende Supermicro-Gehäuse:

1 HE


CSE-815TQ-R450U
    CSE-815TQ-560U
    CSE-812L-280U


2 HE


CSE-825TQ-R700U

Wichtiger Hinweis:

Für ein gebräuchliches Serversystem wird ein Netzteil mit mindestens 420 Watt empfohlen (Verwendung des 24-Pin- UND des 8-Pin-Anschlusses wird zur Sicherstellung der Systemstabilität empfohlen).



Amongst others, optimized for the following Supermicro chassis:

1U


  CSE-815TQ-R450U
    CSE-815TQ-560U
    CSE-812L-280U


2U


  CSE-825TQ-R700U

Important note:

For a general system, a 420W (minimum) ATX12V power supply is recommended (using 8-pin +12V AND 24-pin is recommended to assure system stability).

Zustand gebraucht

auf einwandfreie Funktion durch dt. Techniker überprüft

optischer Zustand: Gebrauchspuren, welche die Funktion nicht beeinträchtigen (z.B. Kratzer oder leichte Beschädigungen / Verschmutzungen) sind möglich

Condition used

tested for perfect function by a German technician

optical condition: traces of usage which don't affect the function (e.g. scratches or slight damages / soilings) are possible

Verpackung • sichere ESD- Versandverpackung
Package • safe ESD-packaging
Lieferumfang ohne weiteres Zubehör (ohne Anschlussblende)
Items delivered without any further accessoires (without I/O shield)
 Technical Information*
 Manufacturer Supermicro
 Model
X7SBU
 Form Factor
Proprietary
20.32cm x 33.02cm
 Chipset Intel X48 chipset
ICH9R + Intel® 82573V + Intel® 82573L
 CPU
Single LGA775 ZIF Socket
Supports Quad-Core Intel® Xeon® X3300/X3200 series
Supports Dual-Core Intel® Xeon® E3100/3000 series
Supports Intel® Xeon® processor L3360 and L3110 series
Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series
Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series
Supports Intel® Pentium® E5000/E2000 series
Supports Intel® Celeron® E1000 and 400 series
NOTE: 1600MHz CPU has to use 1600 MHz XMP Memory
 Memory

• 4x 240-pin DIMM sockets
Supports up to 8 GB of unbuffered, non-ECC DDR3 1333/1066/800MHz memory (Dual Channel) or up to 4 GB Non-ECC 1600MHz XMP DDR3 memory
memory type: DDR3 1333/1066/800MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs or Non-ECC 1600MHz XMP DDR3 memory
DIMM dizes: 256 MB, 512 MB, 1 GB, 2 GB
memory Voltage: dynamic (1.5V to 1.9V)

 Onboard Graphics ATI ES1000 controller with 32 MB of video memory
 Expansion Slots • 2x (x8) PCI-e slot (using x16 slot)
1x (x4) PCI-e slot (using x8 slot)
1x UIO riser slot
 Internal I/O Connectors 6x Serial ATA ports (3 Gbps performance, 6 SATA hard drives supported)
1x EIDE channel supports up to two UDMA IDE devices
(Supports UDMA Mode 5, PIO Mode 4, and ATA/100)
1x Floppy controller (1.44 MB)
2x RJ45 LAN ports
2x internal USB headers
1x internal serial COM port header
 Backpanel I/O ports • 2x USB
• 1x PS/2 keyboard
• 1x PS/2 mouse
• 1x VGA
• 2x LAN RJ45
• 1x Fast UART 16550 serial port
 Fans Total of six 4-pin fan headers
6x fans with tachometer monitoring
Status monitor with firmware / software speed control
Support 3-pin fans (without speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connector



*Keine Haftung für technische Daten.

Bitte überprüfen Sie vor dem Kauf sorgfältig, ob diese Komponente für Ihren Anwendungszweck wirklich geeignet ist.

Angaben zur Produktsicherheit
Achtung: Nicht für Kinder unter 3 Jahren geeignet.
Achtung: Produkt enthält eine Knopfzelle oder Batterie.

Hersteller / EU Verantwortliche Person

Unternehmensname: myne GmbH, Andreas Kämmer

Adresse: Westringstr. 169a, Schkeuditz, 04435, DE

E-Mail: info[aet]electromyne.com, Tel: +4934205411343

16,66 €
(Preis inkl. 19% MwSt. zzgl. Versand)
Verfügbar: 7 Artikel
Auf Lager sofort lieferbar (Lieferung in 1-3 Werktagen)


HP 436066-001 Mainboard System Board ProLiant DL360 G5 Socket LGA 771 435949-001
44,44 €
(Preis inkl. 19% MwSt. zzgl. Versand)
Verfügbar: 3 Artikel
Auf Lager sofort lieferbar (Lieferung in 1-3 Werktagen)


IBM N71TB1 BladeCenter E 8677 Mainboard System Board Server HS12 32R2451 07100-2
24,99 €
(Preis inkl. 19% MwSt. zzgl. Versand)
Verfügbar: 2 Artikel
Auf Lager sofort lieferbar (Lieferung in 1-3 Werktagen)

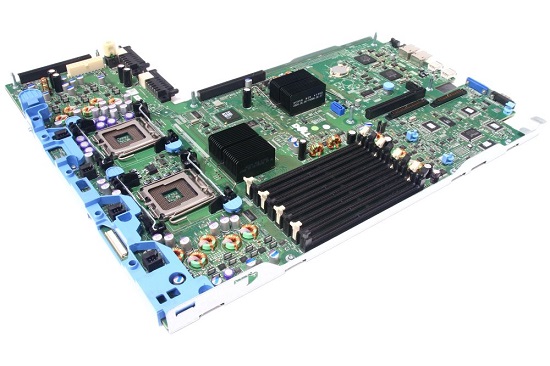

Dell 0NR282 Server Mainboard System Board PowerEdge 2950 I II Dual Socket LGA771
